Understanding the System
At its core, G13 Revival is a USB translation layer between the original Logitech G13 and modern operating systems.
The Logitech G13 was designed long before current macOS versions and modern USB handling requirements. While the hardware itself still works perfectly, direct compatibility has become increasingly unreliable.
Instead of modifying the original device, the project introduces a Teensy 4.1 microcontroller as an intelligent intermediary between the G13 and the computer.

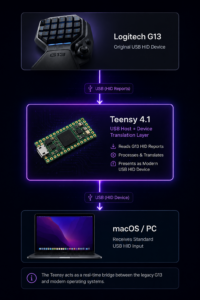

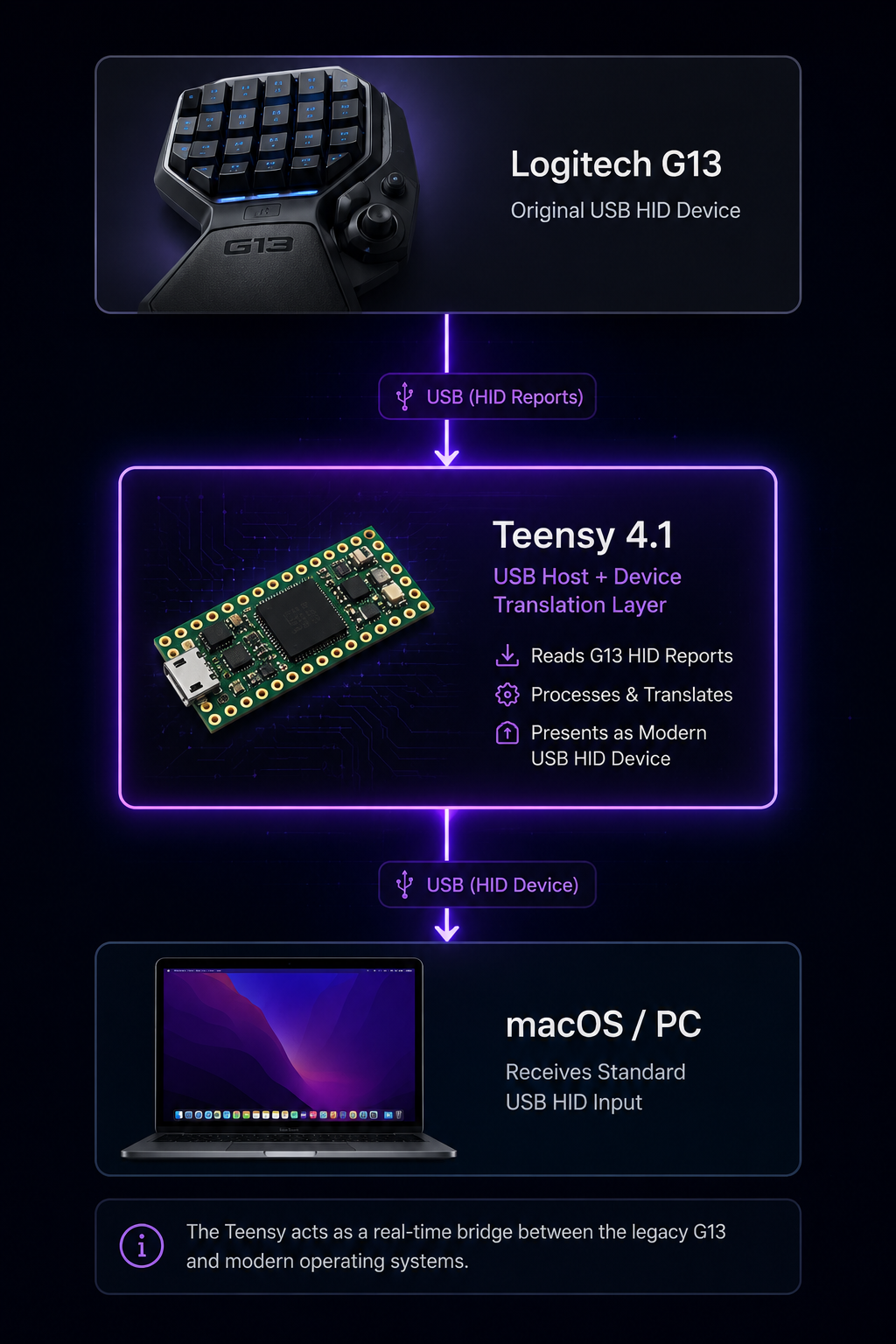

System Overview
The communication flow is intentionally simple:
The G13 connects to the USB host interface of the Teensy.
The Teensy continuously receives and interprets the original HID input data coming from the keypad, joystick and additional controls.
At the same time, the Teensy presents itself to the computer as a modern USB-compatible input device.
This allows the original hardware to remain usable without requiring proprietary Logitech drivers or outdated software.
Why the Teensy 4.1?
The Teensy 4.1 was selected because it combines several important capabilities in a very compact platform:
- native USB host support
- fast HID processing
- stable real-time performance
- excellent Arduino ecosystem integration
- reliable modern USB compatibility
Most importantly, it can operate simultaneously as:
- a USB host for the Logitech G13
- and a USB device toward the computer
This dual-role capability is what makes the translation layer possible.
HID Communication
The Logitech G13 communicates using USB HID reports.
The Teensy listens to these incoming reports, processes the data in real time and forwards compatible input events to the operating system.
This includes:
- key presses
- joystick movement
- additional G-keys
- lighting and LED control
The result is a setup that behaves like a native modern USB device while still preserving the original hardware experience.
Design Philosophy
The project intentionally avoids invasive hardware modifications.
The original Logitech G13 remains electrically unchanged.
All compatibility handling happens externally through the Teensy firmware layer.
This keeps the system:
- reversible
- maintainable
- understandable
- and easy to reproduce for other users
